Keycloak URL

The default keycloak management URL is : https:///keycloak

Realms

There both 2 realms in Keycloak can be configure with a LDAP :

• Master to authenticate as administrator on Keycloak itself
• Hexagon-HPA to authenticate users on HPA portal and Webview

The LDAP can be identical or different

FAQ : Logout fron webview leads to Exception

If when you log out from webview, an exception is displayed on the screen, then check the following parameter :

Hpa Realm > Clients > com.ca.apm.webview.serviceprovider > Logout settings

Set Front channel logout to “Off”

Add LDAP to a Realm

For LDAP authentication :

1. open the Hexagon-HPA realm

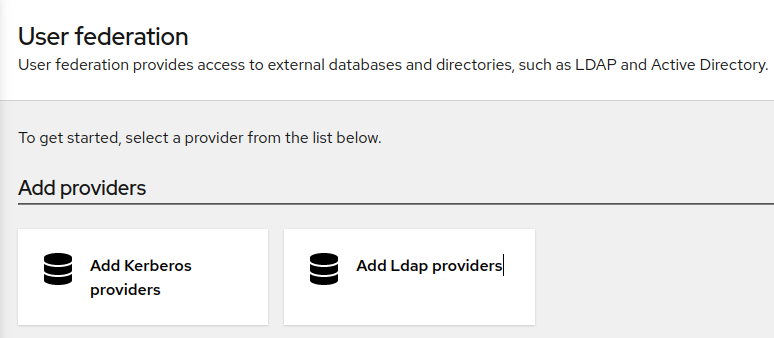

2. open User federation in the left menu

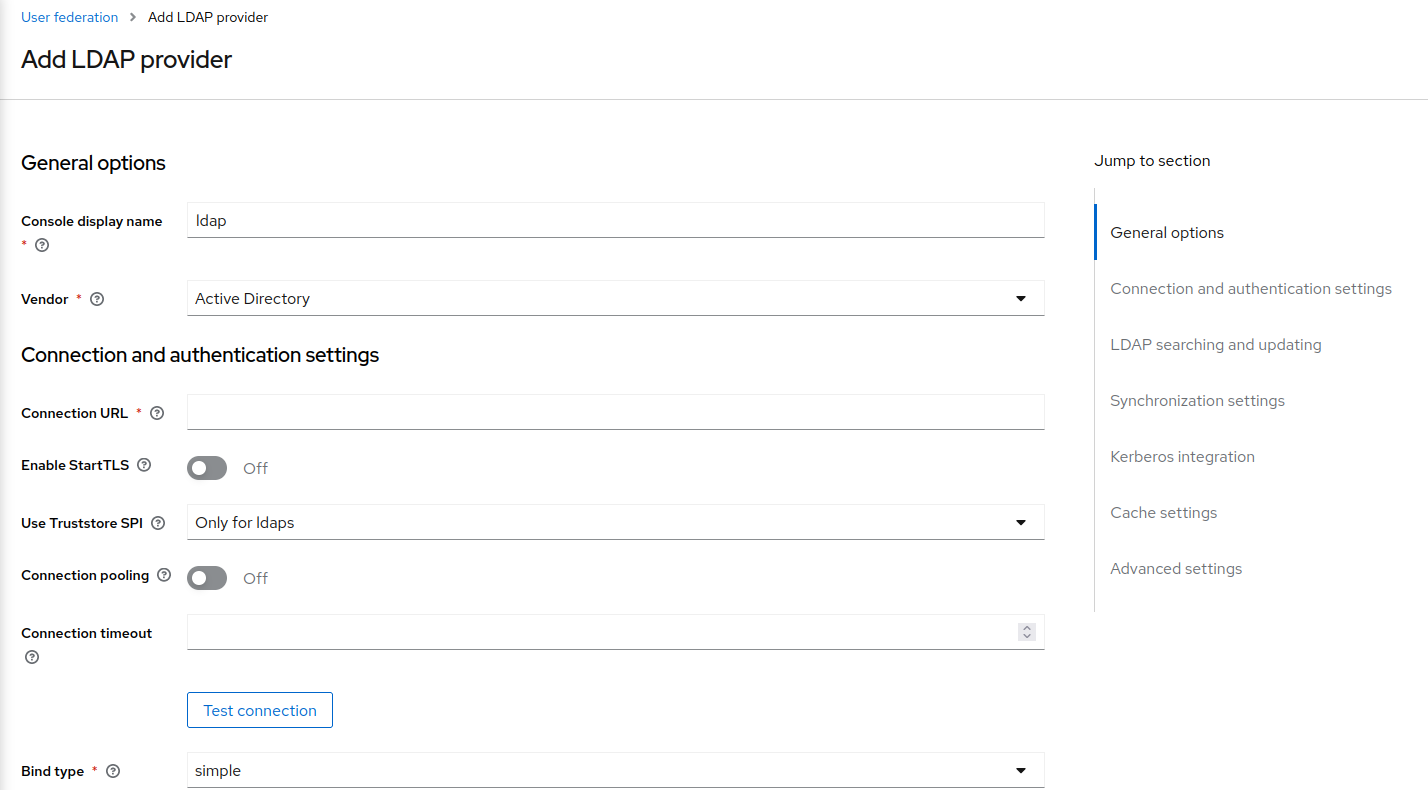

3. click on Add Ldap providers

4. Enter the LDAP information

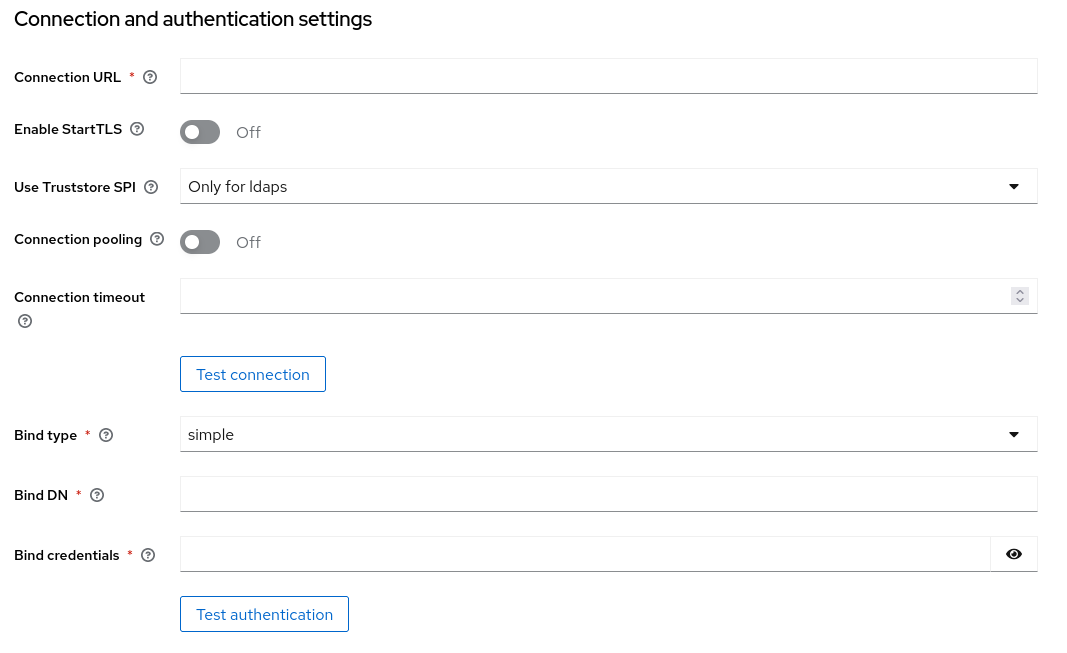

LDAP settings

Usually the information needed for Active Directory are :

• Connection URL : ldaps://server:port
• Bind user DN
• Bind user password
• User DN : the base DN to find users
• Disable import users
• Activate read only

Others options exists according to your LDAP configuration

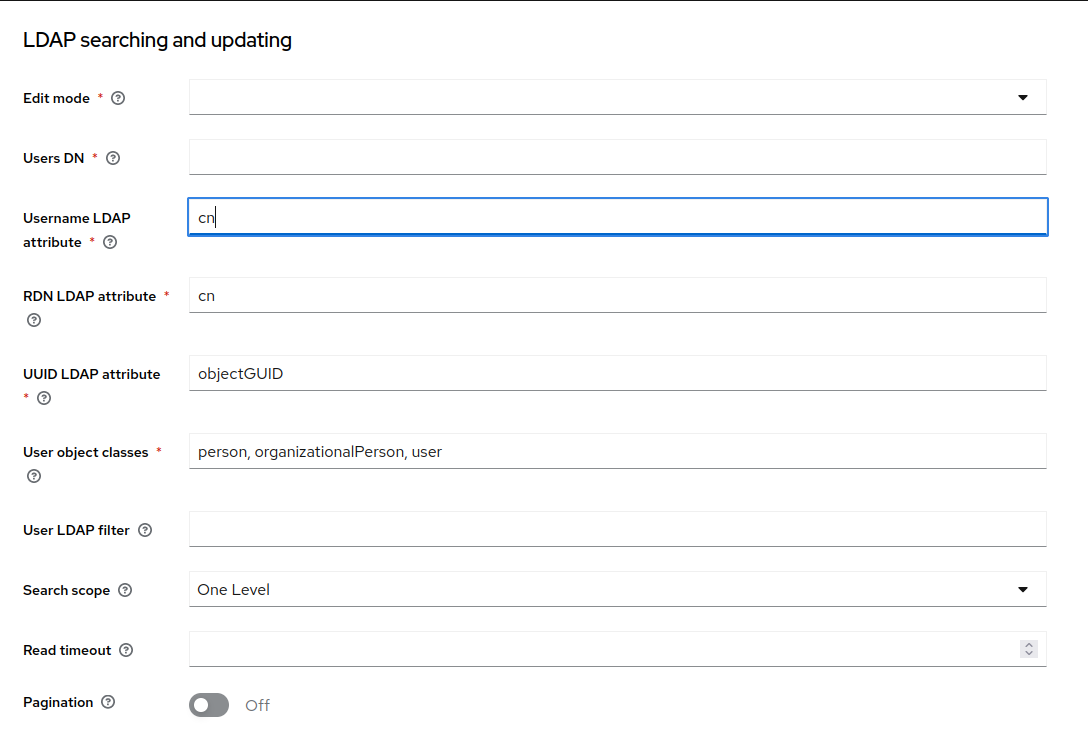

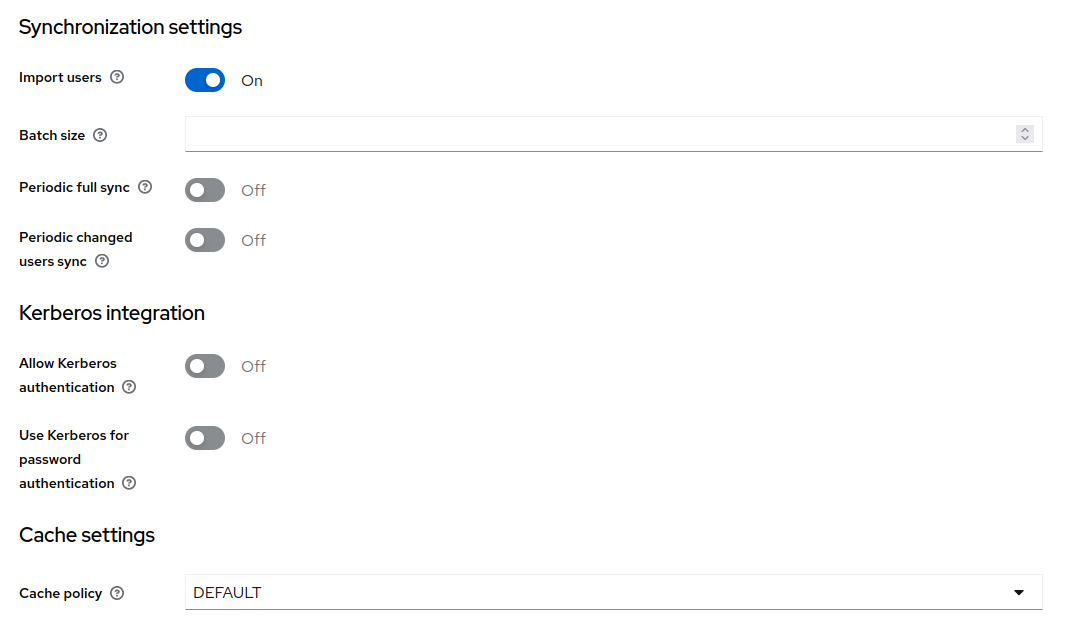

LDAP configuration screenshots

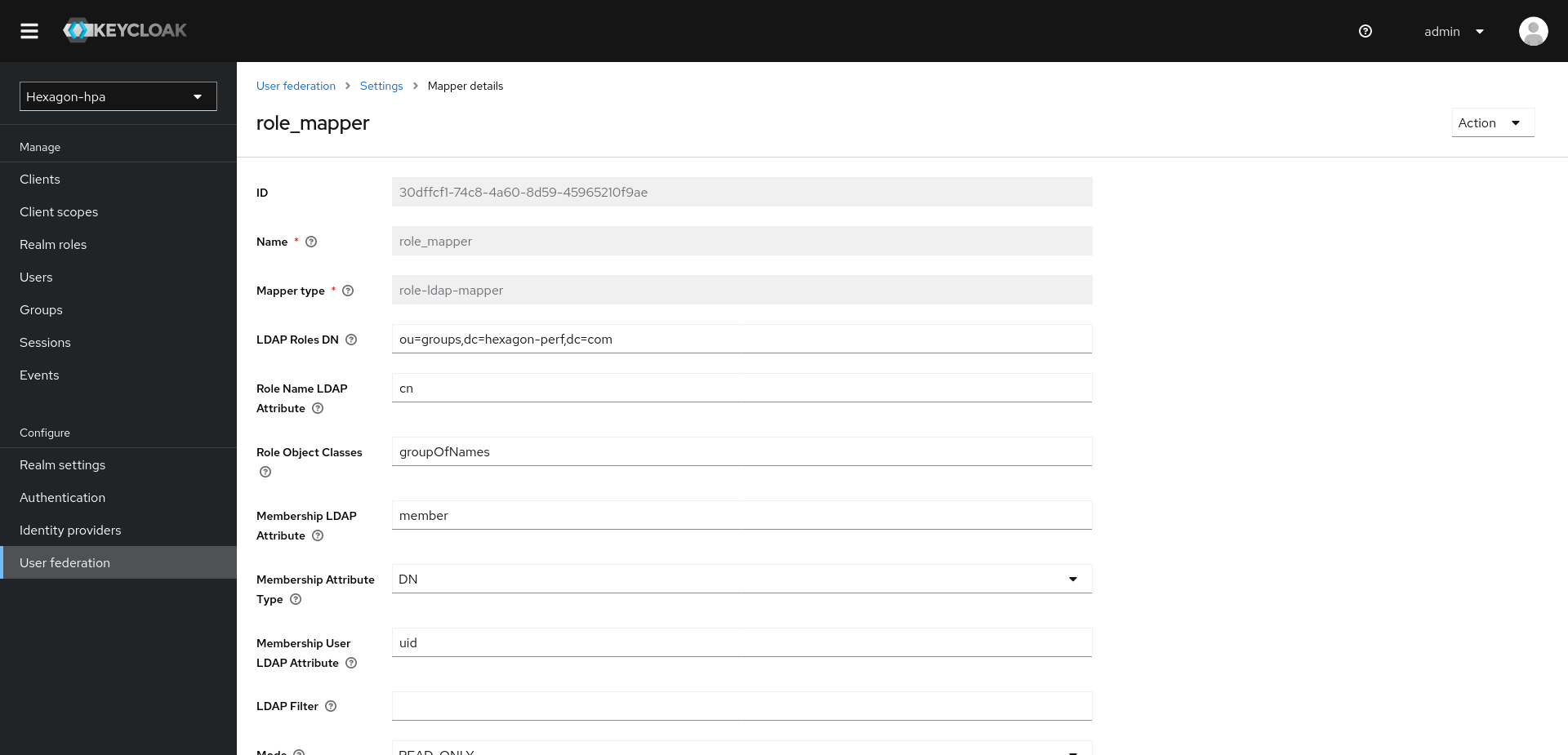

LDAP role mapping
